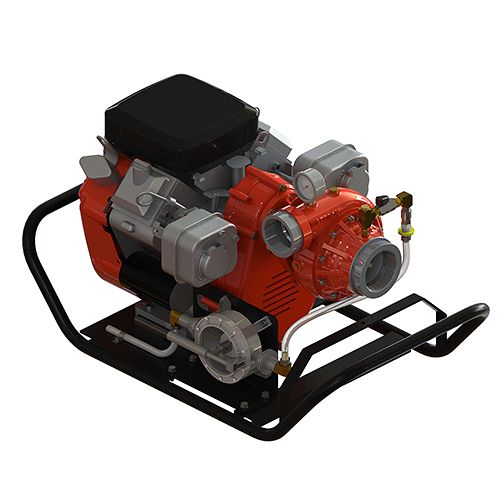

B2X 18 HP PORTABLE

FIRE PUMP

B2X 18 HP PORTABLE

The B2X-18 is a portable Mid-Range fire pump dedicated to wildland & urban interface operations.

Combining both pressure and volume it is ideal for dual attack lines operations, remote water transfer and structural firefighting.

The B2X delivers the best performance of its class with minimal operating costs. Unlike other pumps, the B2X uses a low maintenance drive belt system that provides efficient and dependable performance.

FLOW RATE AT SPECIFIED PRESSURE

Maximum Pressure: 190 PSI (13.1 bar)

Maximum Flow: 300 US gals/min (1136 L/min)

Maximum Head: 439' (134 m)

PERFORMANCE

255 GPM (965 lpm) @ 50 PSI (3.4 BAR)

155 GPM (587 lpm) @ 100 PSI (6.9 BAR)

65 GPM (246 lpm) @ 150 PSI (10.3 BAR)

ENGINE

Model & Type: Briggs & Stratton Vanguard, 4-cycle, horizontal shaft, twin cylinder, OHV

Maximum Power: 18 hp (13.4 KW) @ 4000 RPM

Maximum Torque: 26.9 lb-ft (36.5 Nm) @ 2800 RPM

Starting System: Re-coil start with 12 VDC electric start option

PUMP

Type: Detachable 2-Stage Centrifugal

Intake: 3" Female NPT/4" VIC Combination

Discharge: 2-1/2" Female NPT/3" VIC Combination

WEIGHT

Weight: 167 lbs (76 kg)

FRAME

Carry Frame

DRIVE UNIT

Vertical

OTHER SPECIFICATIONS

Primer: Guzzler Hand Primer (Standard)

Muffler: Dual Low Tone (Standard)

Discharge Gauge: 0-600 psi, 2-1/2ʺ dial (Standard)
